GitHub configuration

Commits and pull requests that mention an issue appear on that issue, live. A GitHub panel lists linked commits and pull-request cards with their state, review summary and checks; merges can add a history note, and pull-request conversation can be mirrored onto the ticket. It is driven by webhooks from a GitHub App you create and own, reads only, and stores metadata — a commit message's first line, a pull-request title and state — never code or diffs.

Connecting the external side is covered separately in the GitHub integration guide.

On RedminePRO Cloud

Availability

Business and above.

Turn it on

Per project: Project → Settings → Modules → tick GitHub. Then connect repositories on the project's GitHub page. The App itself is set up once for the whole workspace at Administration → GitHub.

Permissions

Administration → Roles and permissions, in the GitHub section of the role form:

The panel on an issue is visible to anyone who can see the issue — linking is a property of the work, not a separate thing to be granted.

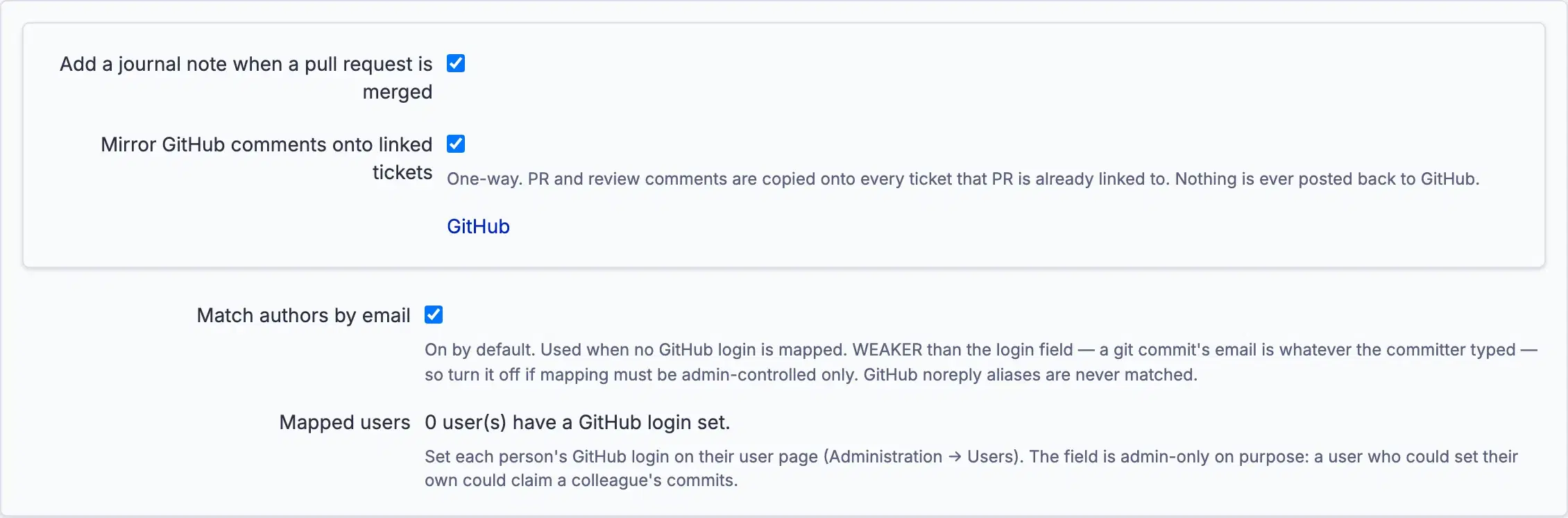

Settings

Administration → Plugins → RedminePRO GitHub:

Match authors by email is deliberately weaker than an explicit mapping: a commit's email is whatever the committer typed. Turn it off where attribution must be administrator-controlled. Addresses that GitHub issues for privacy are never matched.

Using it

1. Enable the module on the project.
2. Open the project's GitHub page and use Add a repository, then Connect. Only repositories the App can already see are offered.
3. Sync now backfills recent pull requests so the panel is not empty on day one.
4. Reference an issue from your work. A commit message containing the issue number, or a branch with the number as a segment, links it.
5. Open the issue. Commits and Pull requests appear with each card's state — Open, Draft, Merged or Closed — and Refresh re-reads from GitHub on demand.

References resolve only inside the projects a repository is connected to, so connecting a repository is what decides where its activity may appear.

Troubleshooting

Nothing appears on the issue. Either the repository is not connected to that issue's project, or the reference was not recognised. Connect it on the project's GitHub page; write the issue number preceded by a hash as a whole word, or paste the full issue address. A branch links through a numeric segment in its name.

Deliveries show 401 in GitHub. The webhook secret in the workspace does not match the App's. Regenerate it at Administration → GitHub, save, then update the App to match. Signatures are checked in constant time against this value.

Deliveries show 503. No Webhook secret is set. A missing secret is treated as a misconfiguration and never as a silent success.

GitHub rate limit reached — try again in a few minutes. GitHub's budget for that installation is spent. Wait a few minutes. The integration never calls the API while processing a webhook — only on Test connection, Load installations from GitHub, Sync now and the panel's Refresh.

The private key is not a valid PEM. The pasted key is truncated or is not the file GitHub gave you. Paste it whole, including its first and last lines.

GitHub rejected the App JWT — check the App ID and that the private key matches this App. The two belong to different Apps.

The repository picker is empty. The page says which of the three causes applies: the App is not configured, its installations have not been loaded yet, or it has access to no repositories. Grant it repository access on the GitHub organization, then load installations again.

Connecting GitHub

You create one GitHub App and install it on each organization whose repositories you want to link. The workspace shows you every value the App needs — the webhook address, a generated secret, and a ready-to-paste manifest — so nothing has to be typed twice. No personal access tokens are involved, and the App asks for read permissions only.

On RedminePRO Cloud

The feature is preinstalled. Start at the next section.

On your own Redmine

Install the feature first — see the GitHub configuration page — then follow the same steps. Your workspace must be reachable from GitHub over HTTPS, or no delivery will ever arrive.

Before you start

• An administrator account on the workspace.
• Owner rights on the GitHub organization, since creating and installing an App is an owner action.
• Decide which organizations are in scope. One App can serve several.

On the external side

1. In the workspace, open Administration → GitHub. Press Generate beside Webhook secret, then save. This stores the secret so incoming deliveries can be verified. Copy the Webhook URL shown.
2. In GitHub, go to your organization → Settings → Developer settings → GitHub Apps → New GitHub App → from a manifest, and paste the App manifest block the workspace displays. It pre-fills the read-only permissions, the events, and the webhook address and secret from step 1.
3. Set the App to be installable on Any account, not only yours. This is what lets one App serve several organizations by address without being listed publicly.
4. Create the App. GitHub then shows its App ID and offers to generate a private key — generate it and keep the downloaded file.
5. On the App's page, choose Install App and pick the organization and the repositories it may see. Repeat for each further organization by opening the same install address.

The App requests these, and nothing else. Every one is read-only; the integration never writes to GitHub.

In RedminePRO

1. Administration → GitHub: paste the App ID and the Private key (PEM), then save. The key is stored encrypted and shown masked afterwards; leaving the field blank keeps the existing one.
2. Press Test connection. It reports whether the credentials and permissions are valid, and names anything missing so you can add it on the App and re-approve it on each organization.
3. Press Load installations from GitHub. This reads which organizations the App is installed on and caches them so projects can pick repositories. Nothing is removed by it.
4. On a project with the GitHub module enabled, open its GitHub page, Add a repository, and Connect. Then Sync now to backfill recent pull requests.

The App slug field is optional — it is the address fragment of your App, used to build install links.

Verify it works

Push a commit whose message contains an issue number preceded by a hash, to a connected repository. Within seconds the GitHub panel on that issue lists the commit. If it does not, open the App's Recent Deliveries on GitHub: a delivery listed there with a success response means GitHub is reaching you and the problem is the reference or the repository mapping; no delivery at all means the webhook address or the App installation is wrong.

Webhook deliveries on Administration → GitHub shows the same story from this side.

What is stored

Metadata only, never code. A commit's first message line, its author and identifier; a pull request's title, number, state, review summary and checks summary; and, when mirroring is on, the text of pull-request comments. Diffs, file contents and source code are never fetched or stored.

The App's private key and the webhook secret are encrypted at rest, masked in the interface, and never written to a log. Incoming deliveries are authenticated by signature in constant time and de-duplicated by their identifier, so a replayed delivery changes nothing. Issue references resolve only inside the projects a repository is connected to.
